Page 252 - Installation Manual - GenII DTS

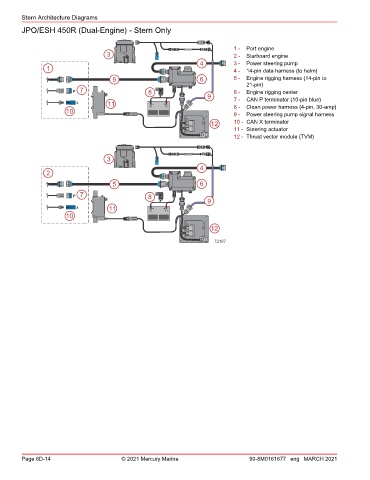

Stern Architecture Diagrams
JPO/ESH 450R (Dual‑Engine) ‑ Stern Only

1 - Port engine
3 2 - Starboard engine
4 3 - Power steering pump
1 4 - 14‑pin data harness (to helm)

5 6 5 - Engine rigging harness (14‑pin to
21‑pin)
P 7 8 6 - Engine rigging center
9 7 - CAN P terminator (10‑pin blue)
X 11 8 - Clean power harness (4‑pin, 30‑amp)
10 9 - Power steering pump signal harness

12 10 - CAN X terminator
11 - Steering actuator
12 - Thrust vector module (TVM)

3
4
2
5 6
P 7 8
9
11
X
10
12
