Stern Architecture Diagrams

JPS Diesel

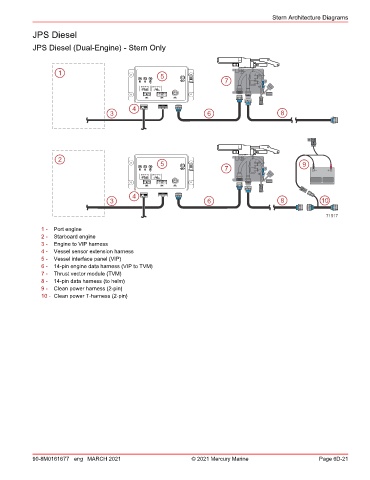

JPS Diesel (Dual‑Engine) ‑ Stern Only

1
5
7

4
3 6 8

2
5 9
7

4
3 6 8 10

71517
1 - Port engine
2 - Starboard engine
3 - Engine to VIP harness
4 - Vessel sensor extension harness
5 - Vessel interface panel (VIP)
6 - 14‑pin engine data harness (VIP to TVM)
7 - Thrust vector module (TVM)
8 - 14‑pin data harness (to helm)
9 - Clean power harness (2‑pin)
10 - Clean power T‑harness (2‑pin)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-21
