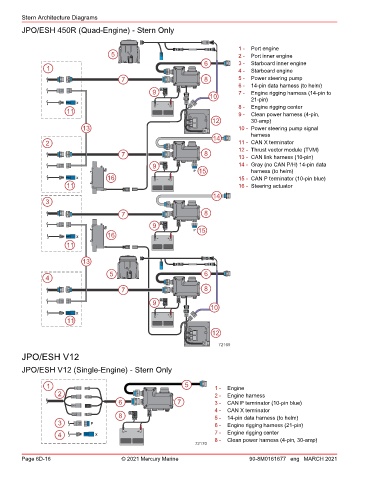

Stern Architecture Diagrams
JPO/ESH 450R (Quad‑Engine) ‑ Stern Only

1 - Port engine
5 2 - Port inner engine
6 3 - Starboard inner engine
1 4 - Starboard engine

7 8 5 - Power steering pump
6 - 14‑pin data harness (to helm)
9 7 - Engine rigging harness (14‑pin to
10 21‑pin)
X 8 - Engine rigging center
11 9 - Clean power harness (4‑pin,
12 30‑amp)
12
13 10 - Power steering pump signal
harness
14
2 11 - CAN X terminator
12 - Thrust vector module (TVM)
7 8 13 - CAN link harness (10‑pin)

9 14 - Gray (no CAN P/H) 14‑pin data
P 15 harness (to helm)
16
X 15 - CAN P terminator (10‑pin blue)
11 16 - Steering actuator
14
3

7 8
9
P 15
16
X
11

13

5 6
4
7 8

9
10
X
11

12

72169
JPO/ESH V12

JPO/ESH V12 (Single‑Engine) ‑ Stern Only

1 5 1 - Engine
2 2 - Engine harness
6 7 3 - CAN P terminator (10‑pin blue)
4 - CAN X terminator
8 5 - 14‑pin data harness (to helm)
3 P 6 - Engine rigging harness (21‑pin)

4 X 7 - Engine rigging center
8 - Clean power harness (4‑pin, 30‑amp)
72170
