Stern Architecture Diagrams

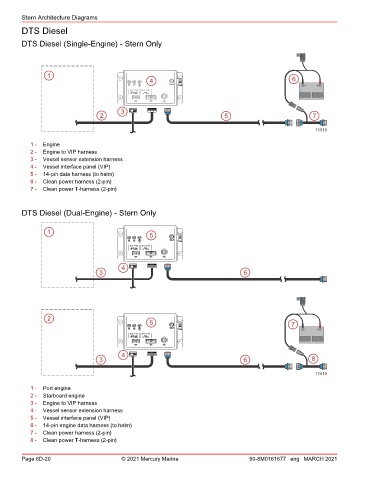

DTS Diesel

DTS Diesel (Single‑Engine) ‑ Stern Only

1
4 6

3
2 5 7

71515

1 - Engine
2 - Engine to VIP harness
3 - Vessel sensor extension harness
4 - Vessel interface panel (VIP)
5 - 14‑pin data harness (to helm)
6 - Clean power harness (2‑pin)
7 - Clean power T‑harness (2‑pin)

DTS Diesel (Dual‑Engine) ‑ Stern Only

1 5

4
3 6

2
5 7

4
3 6 8

71516
1 - Port engine
2 - Starboard engine
3 - Engine to VIP harness
4 - Vessel sensor extension harness
5 - Vessel interface panel (VIP)
6 - 14‑pin engine data harness (to helm)
7 - Clean power harness (2‑pin)
8 - Clean power T‑harness (2‑pin)

Page 6D-20 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
