Stern Architecture Diagrams
JPS/ESH

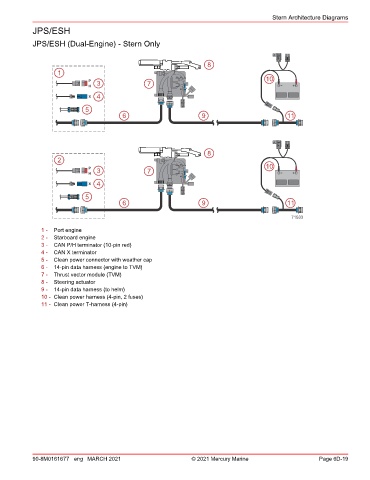

JPS/ESH (Dual‑Engine) ‑ Stern Only

8
1
P 10
H 3 7
X 4

5
6 9 11

8
2
P 10
H 3 7
X 4

5
6 9 11

71533

1 - Port engine
2 - Starboard engine
3 - CAN P/H terminator (10‑pin red)
4 - CAN X terminator
5 - Clean power connector with weather cap
6 - 14‑pin data harness (engine to TVM)
7 - Thrust vector module (TVM)
8 - Steering actuator
9 - 14‑pin data harness (to helm)
10 - Clean power harness (4‑pin, 2 fuses)
11 - Clean power T‑harness (4‑pin)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-19
