Stern Architecture Diagrams

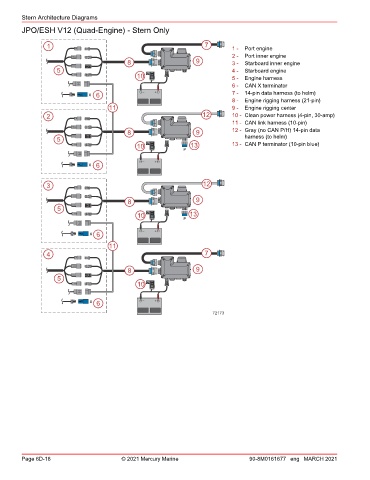

JPO/ESH V12 (Quad‑Engine) ‑ Stern Only

1 7 1 - Port engine
2 - Port inner engine
8 9 3 - Starboard inner engine
5 4 - Starboard engine
10 5 - Engine harness
6 - CAN X terminator
X 6 7 - 14‑pin data harness (to helm)
8 - Engine rigging harness (21‑pin)
11 9 - Engine rigging center
2 12 10 - Clean power harness (4‑pin, 30‑amp)
11 - CAN link harness (10‑pin)

8 9 12 - Gray (no CAN P/H) 14‑pin data
5 harness (to helm)
10 13 13 - CAN P terminator (10‑pin blue)
P

X 6

3 12

8 9
5
10 13
P

X 6
11
4 7

8 9
5
10

X 6
72173
