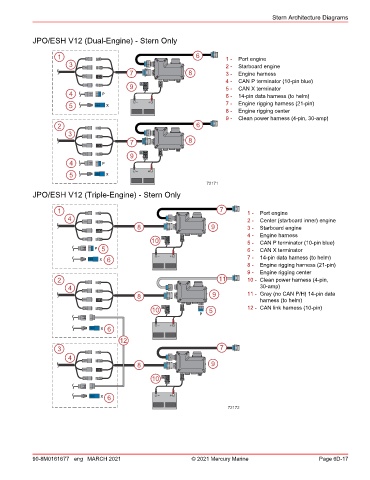

Stern Architecture Diagrams

JPO/ESH V12 (Dual‑Engine) ‑ Stern Only

1 6 1 - Port engine
3 2 - Starboard engine
7 8 3 - Engine harness
4 - CAN P terminator (10‑pin blue)
9 5 - CAN X terminator
4 P 6 - 14‑pin data harness (to helm)
5 X 7 - Engine rigging harness (21‑pin)
8 - Engine rigging center
9 - Clean power harness (4‑pin, 30‑amp)
2 6
3
7 8
9
4 P
5 X
72171
JPO/ESH V12 (Triple‑Engine) ‑ Stern Only

1 7 1 - Port engine
4 2 - Center (starboard inner) engine
8 9 3 - Starboard engine
4 - Engine harness
10 5 - CAN P terminator (10‑pin blue)
P 5 6 - CAN X terminator
X 6 7 - 14‑pin data harness (to helm)
8 - Engine rigging harness (21‑pin)
9 - Engine rigging center
2 11 10 - Clean power harness (4‑pin,
4 30‑amp)
8 9 11 - Gray (no CAN P/H) 14‑pin data
harness (to helm)
10 5 12 - CAN link harness (10‑pin)
P

X 6

12
3 107
4
8 9

10

X 6

72172

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 6D-17
