Helm Harnesses - Single Helm
Single‑Helm Harnesses

IMPORTANT: Refer to the appropriate helm architecture diagram.
• Single helm diagrams are located in Section 6A.
• Dual helm diagrams are located in Section 6B.
• Triple helm diagrams are located in Section 6C.
This section covers single helm harnesses.
Installation
• Ensure that all helm components are laid out with respect to the helm harness breakouts.
• Ensure that the connections can reach all of the components under the helm and along the gunwale.
• Some branches of the harness are extremely short and require components to be mounted in close proximity to each
other.

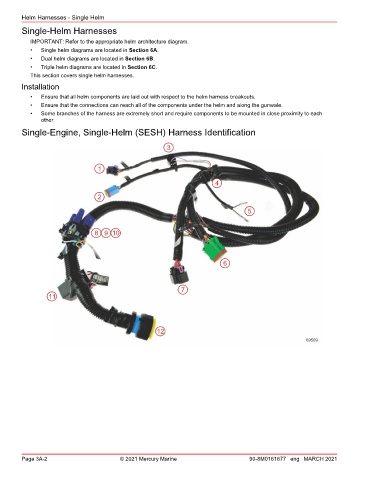

Single‑Engine, Single‑Helm (SESH) Harness Identification

3

1

4

2

5

8 9 10

6

7
11

12
69509
