Helm Harnesses - Multi-Helm
Single‑Engine

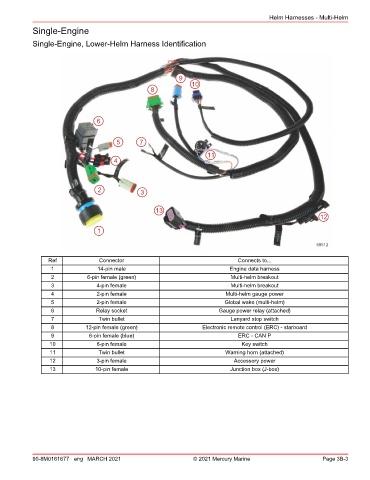

Single‑Engine, Lower‑Helm Harness Identification

9
10
8

6

5 7

11
4

2 3

13
12

1

69512

Ref Connector Connects to...
1 14‑pin male Engine data harness
2 6‑pin female (green) Multi‑helm breakout
3 4‑pin female Multi‑helm breakout
4 2‑pin female Multi‑helm gauge power
5 2‑pin female Global wake (multi‑helm)
6 Relay socket Gauge power relay (attached)
7 Twin bullet Lanyard stop switch
8 12‑pin female (green) Electronic remote control (ERC) ‑ starboard
9 6‑pin female (blue) ERC ‑ CAN P
10 6‑pin female Key switch
11 Twin bullet Warning horn (attached)
12 3‑pin female Accessory power
13 10‑pin female Junction box (J‑box)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3B-3
