Helm Harnesses - Multi-Helm

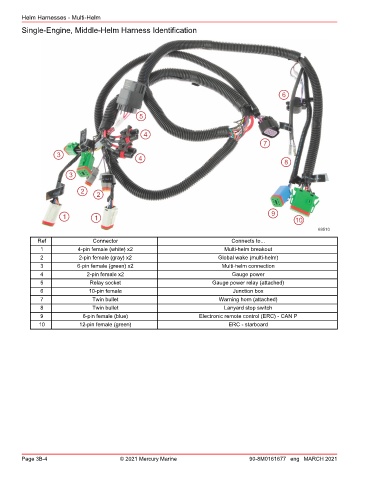

Single‑Engine, Middle‑Helm Harness Identification
6
5
4
7
3
4
8
3
2
2
1 1 9 10
69510
Ref Connector Connects to...
1 4‑pin female (white) x2 Multi‑helm breakout
2 2‑pin female (gray) x2 Global wake (multi‑helm)
3 6‑pin female (green) x2 Multi‑helm connection
4 2‑pin female x2 Gauge power
5 Relay socket Gauge power relay (attached)
6 10‑pin female Junction box
7 Twin bullet Warning horn (attached)
8 Twin bullet Lanyard stop switch
9 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
10 12‑pin female (green) ERC ‑ starboard
Page 3B-4 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
