Page 67 - Installation Manual - GenII DTS

Helm Harnesses - Multi-Helm

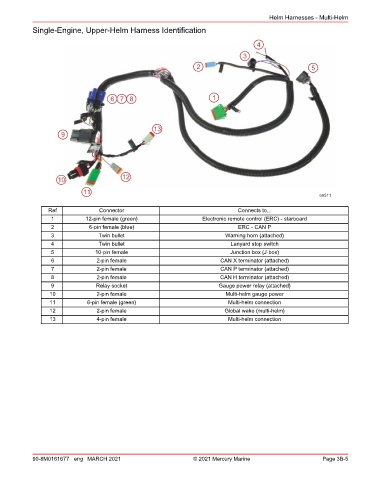

Single‑Engine, Upper‑Helm Harness Identification

4

3
2 5

6 7 8 1

13
9

10 12

11
69511

Ref Connector Connects to...
1 12‑pin female (green) Electronic remote control (ERC) ‑ starboard
2 6‑pin female (blue) ERC ‑ CAN P
3 Twin bullet Warning horn (attached)
4 Twin bullet Lanyard stop switch
5 10‑pin female Junction box (J‑box)
6 2‑pin female CAN X terminator (attached)
7 2‑pin female CAN P terminator (attached)
8 2‑pin female CAN H terminator (attached)
9 Relay socket Gauge power relay (attached)
10 2‑pin female Multi‑helm gauge power
11 6‑pin female (green) Multi‑helm connection
12 2‑pin female Global wake (multi‑helm)
13 4‑pin female Multi‑helm connection
