Page 80 - Installation Manual - GenII DTS

Helm Harnesses - Multi-Helm

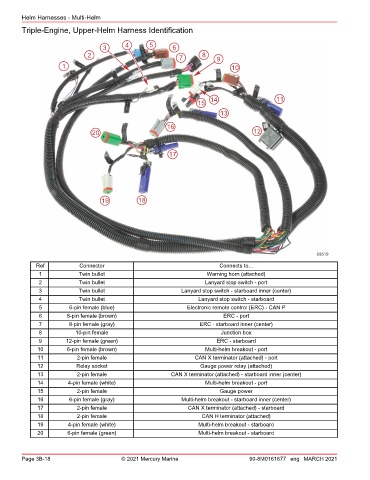

Triple‑Engine, Upper‑Helm Harness Identification

3 4 5 6
2 7 8 9
1 10

14 11
15
13
16
20 12

17

19 18

69519
Ref Connector Connects to...
1 Twin bullet Warning horn (attached)
2 Twin bullet Lanyard stop switch ‑ port
3 Twin bullet Lanyard stop switch ‑ starboard inner (center)
4 Twin bullet Lanyard stop switch ‑ starboard
5 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
6 8‑pin female (brown) ERC ‑ port
7 8‑pin female (gray) ERC ‑ starboard inner (center)
8 10‑pin female Junction box
9 12‑pin female (green) ERC ‑ starboard
10 6‑pin female (brown) Multi‑helm breakout ‑ port
11 2‑pin female CAN X terminator (attached) ‑ port
12 Relay socket Gauge power relay (attached)
13 2‑pin female CAN X terminator (attached) ‑ starboard inner (center)
14 4‑pin female (white) Multi‑helm breakout ‑ port
15 2‑pin female Gauge power
16 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner (center)
17 2‑pin female CAN X terminator (attached) ‑ starboard
18 2‑pin female CAN H terminator (attached)
19 4‑pin female (white) Multi‑helm breakout ‑ starboard
20 6‑pin female (green) Multi‑helm breakout ‑ starboard

Page 3B-18 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
