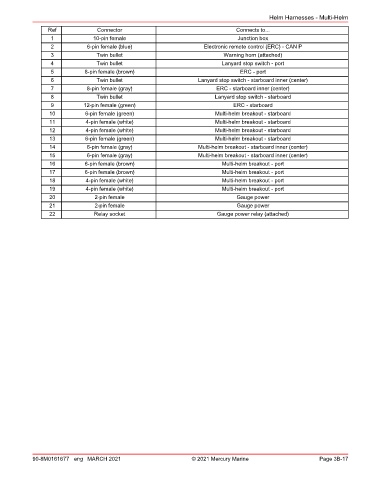

Helm Harnesses - Multi-Helm
Ref Connector Connects to...
1 10‑pin female Junction box
2 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
3 Twin bullet Warning horn (attached)
4 Twin bullet Lanyard stop switch ‑ port
5 8‑pin female (brown) ERC ‑ port
6 Twin bullet Lanyard stop switch ‑ starboard inner (center)
7 8‑pin female (gray) ERC ‑ starboard inner (center)
8 Twin bullet Lanyard stop switch ‑ starboard
9 12‑pin female (green) ERC ‑ starboard
10 6‑pin female (green) Multi‑helm breakout ‑ starboard
11 4‑pin female (white) Multi‑helm breakout ‑ starboard
12 4‑pin female (white) Multi‑helm breakout ‑ starboard
13 6‑pin female (green) Multi‑helm breakout ‑ starboard
14 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner (center)
15 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner (center)
16 6‑pin female (brown) Multi‑helm breakout ‑ port
17 6‑pin female (brown) Multi‑helm breakout ‑ port
18 4‑pin female (white) Multi‑helm breakout ‑ port
19 4‑pin female (white) Multi‑helm breakout ‑ port
20 2‑pin female Gauge power
21 2‑pin female Gauge power
22 Relay socket Gauge power relay (attached)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3B-17
