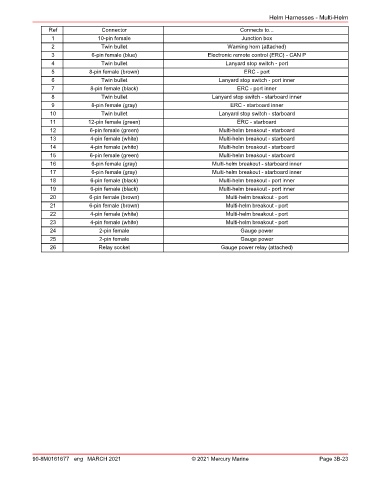

Helm Harnesses - Multi-Helm
Ref Connector Connects to...
1 10‑pin female Junction box
2 Twin bullet Warning horn (attached)
3 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
4 Twin bullet Lanyard stop switch ‑ port
5 8‑pin female (brown) ERC ‑ port
6 Twin bullet Lanyard stop switch ‑ port inner
7 8‑pin female (black) ERC ‑ port inner
8 Twin bullet Lanyard stop switch ‑ starboard inner
9 8‑pin female (gray) ERC ‑ starboard inner
10 Twin bullet Lanyard stop switch ‑ starboard
11 12‑pin female (green) ERC ‑ starboard
12 6‑pin female (green) Multi‑helm breakout ‑ starboard
13 4‑pin female (white) Multi‑helm breakout ‑ starboard
14 4‑pin female (white) Multi‑helm breakout ‑ starboard
15 6‑pin female (green) Multi‑helm breakout ‑ starboard
16 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner
17 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner
18 6‑pin female (black) Multi‑helm breakout ‑ port inner
19 6‑pin female (black) Multi‑helm breakout ‑ port inner
20 6‑pin female (brown) Multi‑helm breakout ‑ port
21 6‑pin female (brown) Multi‑helm breakout ‑ port
22 4‑pin female (white) Multi‑helm breakout ‑ port
23 4‑pin female (white) Multi‑helm breakout ‑ port
24 2‑pin female Gauge power
25 2‑pin female Gauge power
26 Relay socket Gauge power relay (attached)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3B-23
