Helm Harnesses - Multi-Helm

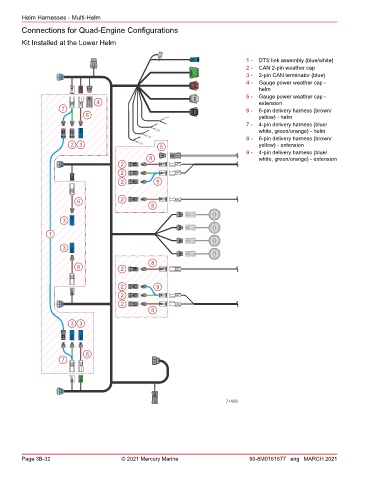

Connections for Quad‑Engine Configurations

Kit Installed at the Lower Helm

1 - DTS link assembly (blue/white)
2 - CAN 2‑pin weather cap
3 - 2‑pin CAN terminator (blue)
4 - Gauge power weather cap ‑
helm
5 - Gauge power weather cap ‑
4 extension
7 6 - 6‑pin delivery harness (brown/
6 yellow) ‑ helm
7 - 4‑pin delivery harness (blue/
white, green/orange) ‑ helm
8 - 6‑pin delivery harness (brown/
2 3 5 yellow) ‑ extension
9 - 4‑pin delivery harness (blue/
8 white, green/orange) ‑ extension
2
2
2 9

6 2
8

3

1
3

8
6 2

2 9
2
2
8

3 3

6
7

71458
