Helm Harnesses - Multi-Helm

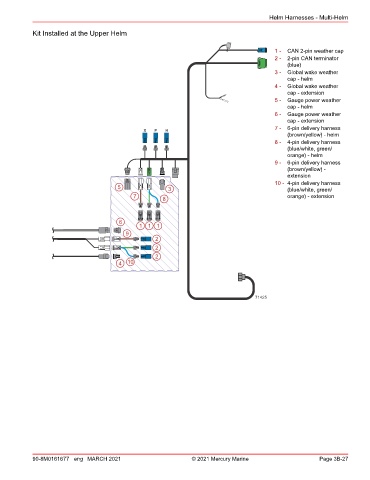

Kit Installed at the Upper Helm

1 - CAN 2‑pin weather cap
2 - 2‑pin CAN terminator
(blue)
3 - Global wake weather
cap ‑ helm
4 - Global wake weather
cap ‑ extension
5 - Gauge power weather
cap ‑ helm
6 - Gauge power weather
cap ‑ extension
7 - 6‑pin delivery harness
X P H
(brown/yellow) ‑ helm
8 - 4‑pin delivery harness
(blue/white, green/
orange) ‑ helm
9 - 6‑pin delivery harness
(brown/yellow) ‑
extension
10 - 4‑pin delivery harness
5 3 (blue/white, green/
7 orange) ‑ extension
8

6
1 1 1
9
2
2
2
4 10

71425
