Helm Harnesses - Multi-Helm

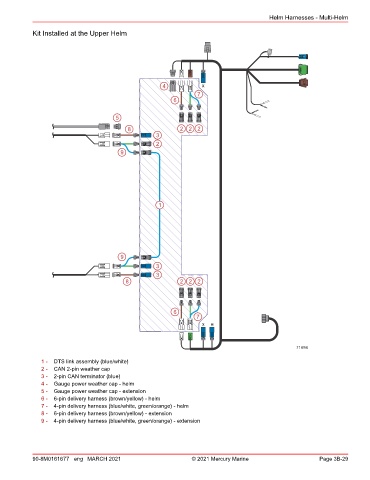

Kit Installed at the Upper Helm

4 X
7
6

5
8 2 2 2
3
2
9

1

9
3
3
8 2 2 2

6
7
X H

71686

1 - DTS link assembly (blue/white)
2 - CAN 2‑pin weather cap
3 - 2‑pin CAN terminator (blue)
4 - Gauge power weather cap ‑ helm
5 - Gauge power weather cap ‑ extension
6 - 6‑pin delivery harness (brown/yellow) ‑ helm
7 - 4‑pin delivery harness (blue/white, green/orange) ‑ helm
8 - 6‑pin delivery harness (brown/yellow) ‑ extension
9 - 4‑pin delivery harness (blue/white, green/orange) ‑ extension
