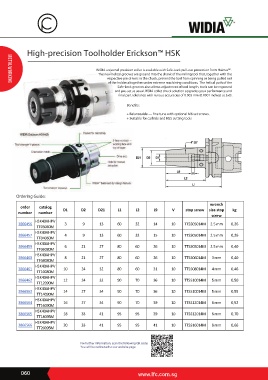

High-precision Toolholder Erickson™ HSK

WIDIA universal precision collet is available with Safe-Lock pull-out protection from Haimer™ .
The new helical grooves are ground into the shank of the milling tool that, together with the
respective pin drivers in the chuck, prevent the tool from spinning or being pulled out
of the holder altogether under extreme machining conditions. The helical path of the
metalworking
Safe-Lock grooves also allows adjustment of tool length, tools can be reground
and pre-set as usual. WDIA collet chuck solution upgrades your performance and
nal part tolerance with runout accuracies of 0.003 mm (0.0001 inches) at 3xD..
Benets:

+ Balanceable — ne tune with optional M6 set screws.
+ Suitable for carbide and HSS cutting tools

Ordering Guide:
wrench
order catalog
number number D1 D2 D21 L1 L2 L9 V stop screw size stop kg
screw
HSK40AHPV
3866456 3 9 13 60 32 14 10 TTSS05014M 2.5 mm 0,26
TT03060M
HSK40AHPV
3866457 4 9 13 60 32 15 10 TTSS05014M 2.5 mm 0,26
TT04060M
HSK40AHPV
3866459 6 21 27 80 60 26 10 TTSS05014M 2.5 mm 0,40
TT06080M
HSK40AHPV
3866460 8 21 27 80 60 26 10 TTSS06014M 3 mm 0,40
TT08080M
HSK40AHPV
3866461 10 24 32 80 60 31 10 TTSS08014M 4 mm 0,46
TT10080M
HSK40AHPV
3866462 12 24 32 90 70 36 10 TTSS10014M 5 mm 0,50
TT12090M
HSK40AHPV
3866563 14 27 34 90 70 36 10 TTSS10014M 5 mm 0,55
TT14090M
HSK40AHPV
3866564 16 27 34 90 70 39 10 TTSS12014M 6 mm 0,52
TT16090M
HSK40AHPV
3866565 18 33 41 95 95 39 10 TTSS12014M 6 mm 0,70
TT18095M
HSK40AHPV
3866566 20 33 41 95 95 41 10 TTSS16014M 8 mm 0,66
TT20095M
