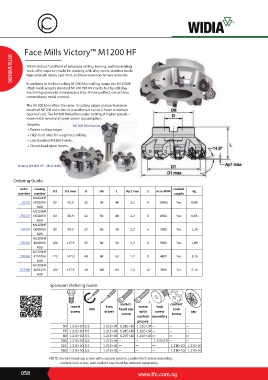

Page 14 - LFC Catalogue metalworking

Face Mills Victory™ M1200 HF

WIDIA Victory™ platform of advanced milling, turning, and holemaking
tools, oer superior results for working with alloy steels, stainless steels,
high-strength steels, cast irons, and now even non-ferrous materials.

In addition to the best selling M1200 face-milling range, the M1200HF
metalworking
(High Feed) accepts standard M1200 HN .09 inserts, but by utilizing
machining science to incorporate a chip-thinning eect, can achieve
extraordinary metal removal.
The M1200 Mini oers the same 12 cutting edges and performance
results of M1200 series but in a smaller size (up to 3.5 mm maximum
depth of cut). The M1200 Mini oers easier cutting at higher speeds –
more metal removal at lower power consumption.
Benets: M1200 Mini Series
+ Twelve cutting edges.
+ High feed rates for rough face milling.
+ Use standard M1200 inserts.
+ Do not load wiper inserts.

Victory M1200 HF • Shell Mills

Ordering Guide:

order catalog coolant
number number D1 D1 max D D6 L Ap1 max Z max RPM supply kg
M1200HF
50370 050Z04H 50 67,9 22 38 40 2,2 4 11400 Yes 0,65
N09
M1200HF
750372 063Z05H 63 80,9 22 50 40 2,2 5 8950 Yes 0,65
N09
M1200HF
750434 080Z06H 80 97,9 27 60 50 2,2 6 7300 Yes 1,24
N09
M1200HF
750435 100Z08H 100 117,9 32 80 50 2,2 8 5900 Yes 1,89
N09
M1200HF
750436 125Z09H 125 142,9 40 90 63 2,2 9 4800 Yes 3,23
N09
M1200HF
957969 160Z12H 160 177,9 40 110 63 2,2 12 3900 Yes 5,14
N09

Sparepart Ordering Guide:

socket-
head cap coolant
socket- coolant
insert Torx screw lock coolant
screw Nm driver head cap with screw lock cap
screw screw
coolant assembly
groove
50 1.21E+10 3,5 1.21E+10 1.21E+10 1.21E+10 — — —
63 1.21E+10 3,5 1.21E+10 1.21E+10 1.21E+10 — — —
80 1.21E+10 3,5 1.21E+10 1.27E+10 1.21E+10 — — —
100 1.21E+10 3,5 1.21E+10 — — 1.21E+10 — —
125 1.21E+10 3,5 1.21E+10 — — — 1.21E+10 1.21E+10
160 1.21E+10 3,5 1.21E+10 — — — 1.21E+10 1.21E+10

NOTE: Socket-head cap screw with coolant groove, coolant lock screw assembly,
coolant lock screw, and coolant cap must be ordered separately.
