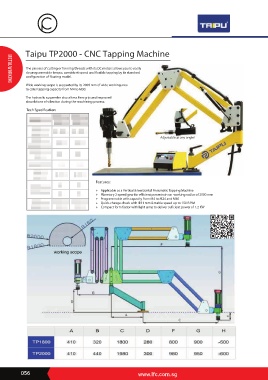

Taipu TP2000 - CNC Tapping Machine

The process of cutting or forming threads with its DC motors allows you to easily
do programmable torque, consistent speed and exible tapping by its standard
conguration of oating model.
Wide working scope is supported by its 2000 mm of wide working area
metalworking
to cater tapping capacity from M4 to M30.
The hydraulic suspender also allows rm grip and improved
absorbtions of vibration during the machining process.
Tech Specication:

Adjustable at any angle!

Features:
+ Applicable as a Vertical & horizontal Pneumatic Tapping Machine
+ Planetary 2 speed gear for efficient powertrain on working radius of 2000 mm
+ Programmable with capacity from M4 to M24 and M40
+ Quick-change chuck with Φ31 mm & stable speed up to 150 R.P.M
+ Compact form factor with light arms to deliver suficient power of 1.2 KW
