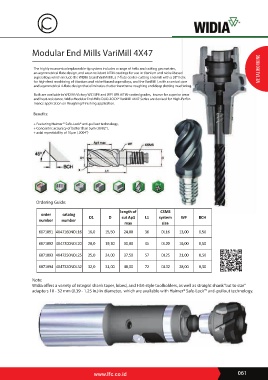

Modular End Mills VariMill 4X47

The highly economical replaceable tip system includes a range of helix and cutting geometries, metalworking
an asymmetrical ute design, and wear-resistant AlTiN coatings for use in titanium and nickel-based
superalloys which include the WIDIA brand VariMill III, a 7-ute center-cutting end mill with a 38° helix
for high-feed machining of titanium and nickel-based superalloys, and the VariMill I, with a conical core
and asymmetrical 4-ute design that eliminates chatter inextreme roughing and deep slotting machining.

Both are available in WIDIA’s Victory WS15PE and WP15PE AlTiN-coated grades, known for superior wear
and heat-resistance. Widia Modular End Mills DUO-λOCK® VariMill 4X47 Series are devised for High-Perfor-
mance application on Roughing/Finishing application.

Benets:

+ Featuring Haimer™ Safe-Lock® anti-pullout technology,
+ Concentric accuracy of better than 5µm (.0002"),
+ axial repeatability of 10µm (.0004")

Ordering Guide:

length of CSMS
order catalog
number number D1 D cut Ap1 L1 system WF BCH
max size
6071091 4X47160NDL16 16,0 15,50 24,00 36 DL16 13,00 0,50

6071092 4X47200NDL20 20,0 19,30 30,00 45 DL20 16,00 0,50

6071093 4X47250NDL25 25,0 24,00 37,50 57 DL25 21,00 0,50

6071094 4X47320NDL32 32,0 31,00 48,00 72 DL32 28,00 0,50

Note:
Widia oers a variety of integral shank taper, lobed, and HSK-style toolholders, as well as straight shank “cut to size”
adapters 10 - 32 mm (0.39 - 1.25 in.) in diameter, which are available with Haimer® Safe-Lock™ anti-pullout technology.
