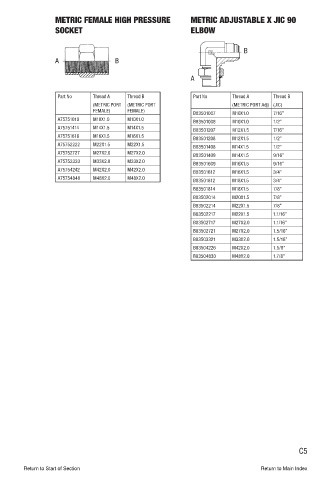

METRIC FEMALE HIGH PRESSURE METRIC ADJUSTABLE X JIC 90
SOCKET ELBOW

B
A B

A

Part No Thread A Thread B Part No Thread A Thread B
(METRIC PORT (METRIC PORT (METRIC PORT Adj) (JIC)
FEMALE) FEMALE) B83501007 M10X1.0 7/16”
A75751010 M10X1.0 M10X1.0 B83501008 M10X1.0 1/2”
A75751414 M14X1.5 M14X1.5 B83501207 M12X1.5 7/16”
A75751616 M16X1.5 M16X1.5 B83501208 M12X1.5 1/2”
A75752222 M22X1.5 M22X1.5 B83501408 M14X1.5 1/2”
A75752727 M27X2.0 M27X2.0 B83501409 M14X1.5 9/16”
A75753333 M33X2.0 M33X2.0 B83501609 M16X1.5 9/16”
A75754242 M42X2.0 M42X2.0
B83501612 M16X1.5 3/4”
A75754848 M48X2.0 M48X2.0
B83501812 M18X1.5 3/4”
B83501814 M18X1.5 7/8”
B83502014 M20X1.5 7/8”
B83502214 M22X1.5 7/8”
B83502217 M22X1.5 1.1/16”
B83502717 M27X2.0 1.1/16”
B83502721 M27X2.0 1.5/16”
B83503321 M33X2.0 1.5/16”
B83504226 M42X2.0 1.5/8”
B83504830 M48X2.0 1.7/8”

C5
