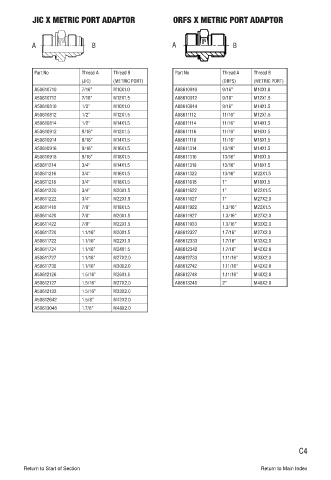

Page 110 - Fluid Fitting 2018_extended

JIC X METRIC PORT ADAPTOR ORFS X METRIC PORT ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(JIC) (METRIC PORT) (ORFS) (METRIC PORT)
A50610710 7/16” M10X1.0 A88610910 9/16” M10X1.0
A50610712 7/16” M12X1.5 A88610912 9/16” M12X1.5
A50610810 1/2” M10X1.0 A88610914 9/16” M14X1.5
A50610812 1/2” M12X1.5 A88611112 11/16” M12X1.5
A50610814 1/2” M14X1.5 A88611114 11/16” M14X1.5
A50610912 9/16” M12X1.5 A88611116 11/16” M16X1.5
A50610914 9/16” M14X1.5 A88611118 11/16” M18X1.5
A50610916 9/16” M16X1.5 A88611314 13/16” M14X1.5
A50610918 9/16” M18X1.5 A88611316 13/16” M16X1.5
A50611214 3/4” M14X1.5 A88611318 13/16” M18X1.5
A50611216 3/4” M16X1.5 A88611322 13/16” M22X1.5
A50611218 3/4” M18X1.5 A88611618 1” M18X1.5
A50611220 3/4” M20X1.5 A88611622 1” M22X1.5
A50611222 3/4” M22X1.5 A88611627 1” M27X2.0
A50611418 7/8” M18X1.5 A88611922 1.3/16” M22X1.5
A50611420 7/8” M20X1.5 A88611927 1.3/16” M27X2.0
A50611422 7/8” M22X1.5 A88611933 1.3/16” M33X2.0
A50611720 1.1/16” M20X1.5 A88612327 1.7/16” M27X2.0
A50611722 1.1/16” M22X1.5 A88612333 1.7/16” M33X2.0
A50611724 1.1/16” M24X1.5 A88612342 1.7/16” M42X2.0
A50611727 1.1/16” M27X2.0 A88612733 1.11/16” M33X2.0
A50611730 1.1/16” M30X2.0 A88612742 1.11/16” M42X2.0
A50612126 1.5/16” M26X1.5 A88612748 1.11/16” M48X2.0
A50612127 1.5/16” M27X2.0 A88613248 2” M48X2.0
A50612133 1.5/16” M33X2.0
A50612642 1.5/8” M42X2.0
A50613048 1.7/8” M48X2.0

C4
