SECTION D - TWO PIECE SWAGE
Black - Pantone Black
Grey - Cool Grey 10

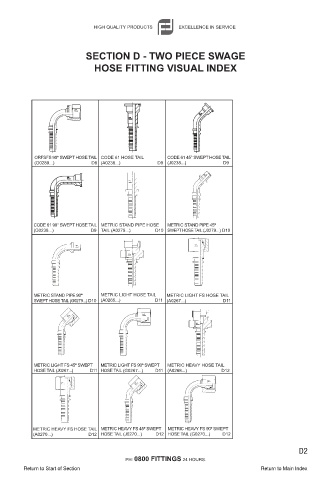

HOSE FITTING VISUAL INDEX
CMYK:
Grey
Black
Red
C: 0 C: 0 RGB: Black
M: 0 M: 0 R: 75 R: 0
Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
ORFSFS 90° SWEPT HOSE TAIL CODE 61 HOSE TAIL CODE 61 45° SWEPT HOSE TAIL
(G0289...) D8 (A0238...) D9 (J0238...) D9
CODE 61 90° SWEPT HOSE TAIL METRIC STAND PIPE HOSE METRIC STAND PIPE 45°
(G0238...) D9 TAIL (A0279...) D10 SWEPT HOSE TAIL (J0279...) D10

METRIC STAND PIPE 90° METRIC LIGHT HOSE TAIL METRIC LIGHT FS HOSE TAIL
SWEPT HOSE TAIL (G0279...) D10 (A0265...) D11 (A0267...) D11

METRIC LIGHT FS 45° SWEPT METRIC LIGHT FS 90° SWEPT METRIC HEAVY HOSE TAIL
HOSE TAIL (J0267...) D11 HOSE TAIL (G0267...) D11 (A0268...) D12

METRIC HEAVY FS HOSE TAIL METRIC HEAVY FS 45° SWEPT METRIC HEAVY FS 90° SWEPT
(A0270...) D12 HOSE TAIL (J0270...) D12 HOSE TAIL (G0270...) D12
