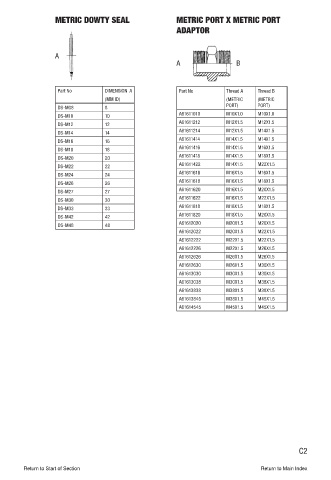

Page 108 - Fluid Fitting 2018_extended

METRIC DOWTY SEAL METRIC PORT X METRIC PORT
ADAPTOR

A
A B

Part No DIMENSION A Part No Thread A Thread B
(MM ID) (METRIC (METRIC
DS-M08 8 PORT) PORT)
DS-M10 10 A61611010 M10X1.0 M10X1.0
DS-M12 12 A61611212 M12X1.5 M12X1.5
DS-M14 14 A61611214 M12X1.5 M14X1.5
DS-M16 16 A61611414 M14X1.5 M14X1.5
DS-M18 18 A61611416 M14X1.5 M16X1.5
DS-M20 20 A61611418 M14X1.5 M18X1.5
DS-M22 22 A61611422 M14X1.5 M22X1.5
DS-M24 24 A61611616 M16X1.5 M16X1.5
DS-M26 26 A61611618 M16X1.5 M18X1.5
DS-M27 27 A61611620 M16X1.5 M20X1.5
DS-M30 30 A61611622 M16X1.5 M22X1.5
DS-M33 33 A61611818 M18X1.5 M18X1.5
DS-M42 42 A61611820 M18X1.5 M20X1.5
DS-M48 48 A61612020 M20X1.5 M20X1.5
A61612022 M20X1.5 M22X1.5
A61612222 M22X1.5 M22X1.5
A61612226 M22X1.5 M26X1.5
A61612626 M26X1.5 M26X1.5
A61612630 M26X1.5 M30X1.5
A61613030 M30X1.5 M30X1.5
A61613038 M30X1.5 M38X1.5
A61613838 M38X1.5 M38X1.5
A61613845 M38X1.5 M45X1.5
A61614545 M45X1.5 M45X1.5

C2
