SECTION D - TWO PIECE SWAGE
Black - Pantone Black
Grey - Cool Grey 10

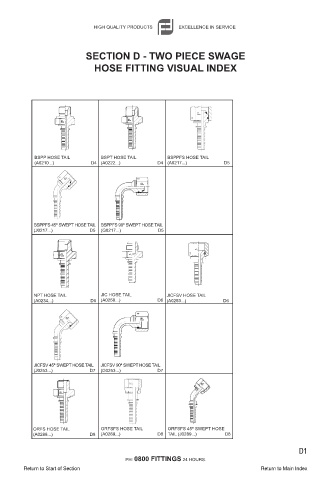

HOSE FITTING VISUAL INDEX
CMYK:
Grey
Black
Red
C: 0 C: 0 RGB: Black
M: 0 M: 0 R: 75 R: 0
Y: 0 Y: 0 G: 75 G: 0
K: 70 K: 100 B: 75 B: 0
BSPP HOSE TAIL BSPT HOSE TAIL BSPPFS HOSE TAIL
(A0210...) D4 (A0222...) D4 (A0217...) D5
BSPPFS 45° SWEPT HOSE TAIL BSPPFS 90° SWEPT HOSE TAIL
(J0217...) D5 (G0217...) D5

NPT HOSE TAIL JIC HOSE TAIL JICFSV HOSE TAIL
(A0234...) D6 (A0250...) D6 (A0253...) D6

JICFSV 45° SWEPT HOSE TAIL JICFSV 90° SWEPT HOSE TAIL
(J0253...) D7 (G0253...) D7

ORFS HOSE TAIL ORFSFS HOSE TAIL ORFSFS 45° SWEPT HOSE
(A0288...) D8 (A0289...) D8 TAIL (J0289...) D8

D1

PH: 0800 FITTINGS 24 HOURS.
Return to Start of Section Return to Main Index
