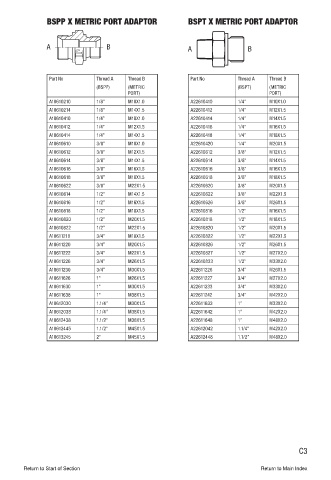

BSPP X METRIC PORT ADAPTOR BSPT X METRIC PORT ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(BSPP) (METRIC (BSPT) (METRIC
PORT) PORT)
A10610210 1/8” M10X1.0 A22610410 1/4” M10X1.0
A10610214 1/8” M14X1.5 A22610412 1/4” M12X1.5
A10610410 1/4” M10X1.0 A22610414 1/4” M14X1.5
A10610412 1/4” M12X1.5 A22610416 1/4” M16X1.5
A10610414 1/4” M14X1.5 A22610418 1/4” M18X1.5
A10610610 3/8” M10X1.0 A22610420 1/4” M20X1.5
A10610612 3/8” M12X1.5 A22610612 3/8” M12X1.5
A10610614 3/8” M14X1.5 A22610614 3/8” M14X1.5
A10610616 3/8” M16X1.5 A22610616 3/8” M16X1.5
A10610618 3/8” M18X1.5 A22610618 3/8” M18X1.5
A10610622 3/8” M22X1.5 A22610620 3/8” M20X1.5
A10610814 1/2” M14X1.5 A22610622 3/8” M22X1.5
A10610816 1/2” M16X1.5 A22610626 3/8” M26X1.5
A10610818 1/2” M18X1.5 A22610816 1/2” M16X1.5
A10610820 1/2” M20X1.5 A22610818 1/2” M18X1.5
A10610822 1/2” M22X1.5 A22610820 1/2” M20X1.5
A10611218 3/4” M18X1.5 A22610822 1/2” M22X1.5
A10611220 3/4” M20X1.5 A22610826 1/2” M26X1.5
A10611222 3/4” M22X1.5 A22610827 1/2” M27X2.0
A10611226 3/4” M26X1.5 A22610833 1/2” M33X2.0
A10611230 3/4” M30X1.5 A22611226 3/4” M26X1.5
A10611626 1” M26X1.5 A22611227 3/4” M27X2.0
A10611630 1” M30X1.5 A22611233 3/4” M33X2.0
A10611638 1” M38X1.5 A22611242 3/4” M42X2.0
A10612030 1.1/4” M30X1.5 A22611633 1” M33X2.0
A10612038 1.1/4” M38X1.5 A22611642 1” M42X2.0
A10612438 1.1/2” M38X1.5 A22611648 1” M48X2.0
A10612445 1.1/2” M45X1.5 A22612042 1.1/4” M42X2.0
A10613245 2” M45X1.5 A22612448 1.1/2” M48X2.0

C3
