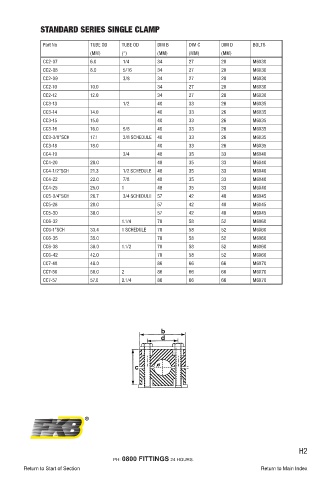

Page 140 - Fluid Fitting 2018_extended

STANDARD SERIES SINGLE CLAMP

Part No TUBE OD TUBE OD DIM B DIM C DIM D BOLTS
(MM) (“) (MM) (MM) (MM)
CC2-07 6.0 1/4 34 27 20 M6X30
CC2-08 8.0 5/16 34 27 20 M6X30
CC2-09 3/8 34 27 20 M6X30
CC2-10 10.0 34 27 20 M6X30
CC2-12 12.0 34 27 20 M6X30
CC3-13 1/2 40 33 26 M6X35
CC3-14 14.0 40 33 26 M6X35
CC3-15 15.0 40 33 26 M6X35
CC3-16 16.0 5/8 40 33 26 M6X35
CC3-3/8”SCH 17.1 3/8 SCHEDULE 40 33 26 M6X35
CC3-18 18.0 40 33 26 M6X35
CC4-19 3/4 48 35 33 M6X40
CC4-20 20.0 48 35 33 M6X40
CC4-1/2”SCH 21.3 1/2 SCHEDULE 48 35 33 M6X40
CC4-22 22.0 7/8 48 35 33 M6X40
CC4-25 25.0 1 48 35 33 M6X40
CC5-3/4”SCH 26.7 3/4 SCHEDULE 57 42 40 M6X45
CC5-28 28.0 57 42 40 M6X45
CC5-30 30.0 57 42 40 M6X45
CC6-32 1.1/4 70 58 52 M6X60
CC6-1”SCH 33.4 1 SCHEDULE 70 58 52 M6X60
CC6-35 35.0 70 58 52 M6X60
CC6-38 38.0 1.1/2 70 58 52 M6X60
CC6-42 42.0 70 58 52 M6X60
CC7-48 48.0 86 66 66 M6X70
CC7-50 50.0 2 86 66 66 M6X70
CC7-57 57.0 2.1/4 86 66 66 M6X70

H2
