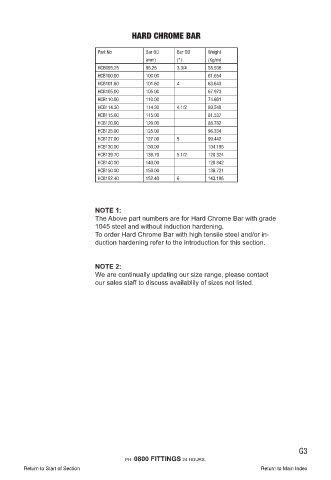

HARD CHROME BAR

Part No Bar OD Bar OD Weight
(mm) (”) (Kg/m)
HCB095.25 95.25 3.3/4 55.936
HCB100.00 100.00 61.654
HCB101.60 101.60 4 63.643
HCB105.00 105.00 67.973
HCB110.00 110.00 74.601
HCB114.30 114.30 4.1/2 80.548
HCB115.00 115.00 81.537
HCB120.00 120.00 88.782
HCB125.00 125.00 96.334
HCB127.00 127.00 5 99.442
HCB130.00 130.00 104.195
HCB139.70 139.70 5.1/2 120.324
HCB140.00 140.00 120.842
HCB150.00 150.00 138.721
HCB152.40 152.40 6 143.196

NOTE 1:
The Above part numbers are for Hard Chrome Bar with grade
1045 steel and without induction hardening.
To order Hard Chrome Bar with high tensile steel and/or in-
duction hardening refer to the introduction for this section.

NOTE 2:
We are continually updating our size range, please contact
our sales staff to discuss availablily of sizes not listed.

G3
