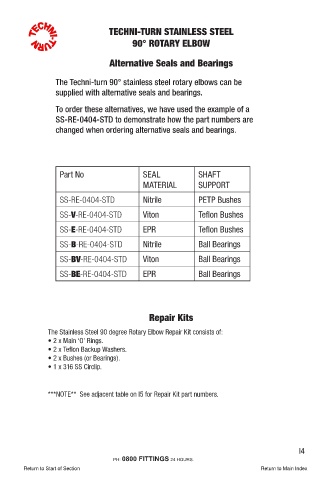

TECHNI-TURN STAINLESS STEEL

90° ROTARY ELBOW

Alternative Seals and Bearings

The Techni-turn 90° stainless steel rotary elbows can be
supplied with alternative seals and bearings.

To order these alternatives, we have used the example of a
SS-RE-0404-STD to demonstrate how the part numbers are
changed when ordering alternative seals and bearings.

Part No SEAL SHAFT

MATERIAL SUPPORT

SS-RE-0404-STD Nitrile PETP Bushes

SS-V-RE-0404-STD Viton Teflon Bushes

SS-E-RE-0404-STD EPR Teflon Bushes

SS-B-RE-0404-STD Nitrile Ball Bearings

SS-BV-RE-0404-STD Viton Ball Bearings

SS-BE-RE-0404-STD EPR Ball Bearings

Repair Kits

The Stainless Steel 90 degree Rotary Elbow Repair Kit consists of:
• 2 x Main ‘O’ Rings.
• 2 x Teflon Backup Washers.
• 2 x Bushes (or Bearings).
• 1 x 316 SS Circlip.

***NOTE** See adjacent table on I5 for Repair Kit part numbers.
