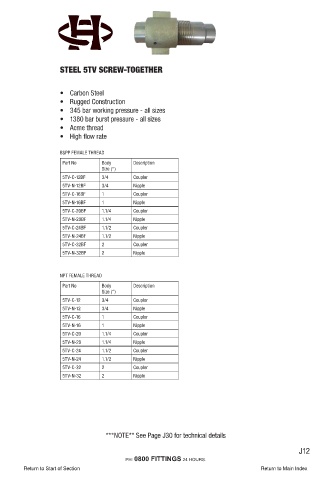

STEEL 5TV SCREW-TOGETHER

• Carbon Steel
• Rugged Construction
• 345 bar working pressure - all sizes
• 1380 bar burst pressure - all sizes
• Acme thread
• High flow rate

BSPP FEMALE THREAD
Part No Body Description
Size (“)
5TV-C-12BF 3/4 Coupler
5TV-N-12BF 3/4 Nipple
5TV-C-16BF 1 Coupler
5TV-N-16BF 1 Nipple
5TV-C-20BF 1.1/4 Coupler
5TV-N-20BF 1.1/4 Nipple
5TV-C-24BF 1.1/2 Coupler
5TV-N-24BF 1.1/2 Nipple
5TV-C-32BF 2 Coupler
5TV-N-32BF 2 Nipple

NPT FEMALE THREAD
Part No Body Description
Size (“)
5TV-C-12 3/4 Coupler
5TV-N-12 3/4 Nipple
5TV-C-16 1 Coupler
5TV-N-16 1 Nipple
5TV-C-20 1.1/4 Coupler
5TV-N-20 1.1/4 Nipple
5TV-C-24 1.1/2 Coupler
5TV-N-24 1.1/2 Nipple
5TV-C-32 2 Coupler
5TV-N-32 2 Nipple

***NOTE** See Page J30 for technical details

J12
