202 SERIES
HPA POPPET VALVE
STANDARD MALE MODELS

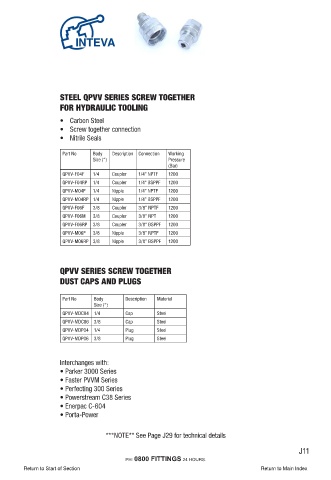

STEEL QPVV SERIES SCREW TOGETHER
FOR HYDRAULIC TOOLING DN ØA1 REF. E/C ØG L1 ØF L
• Carbon Steel 06 ¼” NPTF 202.11141BB 1200Bar * * * * *
• Screw together connection 10 ⅜” NPTF 202.11142BC 1200Bar 24 1 3/16” UN 38,88 18,99 72,75
• Nitrile Seals
STAINLESS STEEL MALE MODELS
Part No Body Description Connection Working
Size (“) Pressure DN ØA1 REF. E/C ØG L1 ØF L
(Bar)
QPVV-F04F 1/4 Coupler 1/4” NPTF 1200 06 ¼” NPTF 202.21121BB 1200Bar * * * * *
QPVV-F04RP 1/4 Coupler 1/4” BSPPF 1200 10 ⅜” NPTF 202.21122BC 1200Bar 24 1 3/16” UN 42,50 18,99 72,75
QPVV-M04F 1/4 Nipple 1/4” NPTF 1200
QPVV-M04RP 1/4 Nipple 1/4” BSPPF 1200
QPVV-F06F 3/8 Coupler 3/8” NPTF 1200
QPVV-F06M 3/8 Coupler 3/8” NPT 1200
QPVV-F06RP 3/8 Coupler 3/8” BSPPF 1200
QPVV-M06F 3/8 Nipple 3/8” NPTF 1200
QPVV-M06RP 3/8 Nipple 3/8” BSPPF 1200
STANDARD FEMALE MODELS
DN ØA REF. CH2 L2 ØE L
QPVV SERIES SCREW TOGETHER 06 ¼” NPTF M. 202.12141BM 1200Bar * * * *
DUST CAPS AND PLUGS 10 ⅜” NPTF M. 202.12142BN 1200Bar 22 45,50 34,50 72,75
STAINLESS STEEL FEMALE MODELS
Part No Body Description Material
Size (“)
DN ØA REF. CH2 L2 ØE L
QPVV-MDC04 1/4 Cap Steel
QPVV-MDC06 3/8 Cap Steel 06 ¼” NPTF M. 202.22121BM 1200Bar * * * *
QPVV-MDP04 1/4 Plug Steel 10 ⅜” NPTF M. 202.22122BN 1200Bar 22 45,50 34,50 72,75
QPVV-MDP06 3/8 Plug Steel
Interchanges with:
• Parker 3000 Series
• Faster PVVM Series
• Perfecting 300 Series
• Powerstream C38 Series
• Enerpac C-604
• Porta-Power
***NOTE** See Page J29 for technical details
J11
