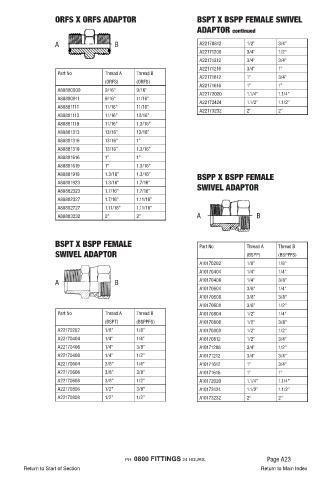

Page 27 - Fluid Fitting 2018_extended

ORFS X ORFS ADAPTOR BSPT X BSPP FEMALE SWIVEL

ADAPTOR continued

A B A22170812 1/2” 3/4”
A22171208 3/4” 1/2”
A22171212 3/4” 3/4”
A22171216 3/4” 1”
Part No Thread A Thread B
A22171612 1” 3/4”
(ORFS) (ORFS)
A22171616 1” 1”
A88880909 9/16” 9/16”
A22172020 1.1/4” 1.1/4”
A88880911 9/16” 11/16”
A22172424 1.1/2” 1.1/2”
A88881111 11/16” 11/16”
A22173232 2” 2”
A88881113 11/16” 13/16”
A88881119 11/16” 1.3/16”
A88881313 13/16” 13/16”
A88881316 13/16” 1”
A88881319 13/16” 1.3/16”
A88881616 1” 1”
A88881619 1” 1.3/16”
A88881919 1.3/16” 1.3/16” BSPP X BSPP FEMALE
A88881923 1.3/16” 1.7/16”
A88882323 1.7/16” 1.7/16” SWIVEL ADAPTOR
A88882327 1.7/16” 1.11/16”
A88882727 1.11/16” 1.11/16”
A88883232 2” 2” A B

BSPT X BSPP FEMALE Part No Thread A Thread B
SWIVEL ADAPTOR (BSPP) (BSPPFS)

A10170202 1/8” 1/8”
A10170404 1/4” 1/4”
A B A10170406 1/4” 3/8”
A10170604 3/8” 1/4”
A10170606 3/8” 3/8”
A10170608 3/8” 1/2”
Part No Thread A Thread B A10170804 1/2” 1/4”
(BSPT) (BSPPFS) A10170806 1/2” 3/8”
A22170202 1/8” 1/8” A10170808 1/2” 1/2”
A22170404 1/4” 1/4” A10170812 1/2” 3/4”
A22170406 1/4” 3/8” A10171208 3/4” 1/2”
A22170408 1/4” 1/2” A10171212 3/4” 3/4”
A22170604 3/8” 1/4” A10171612 1” 3/4”
A22170606 3/8” 3/8” A10171616 1” 1”
A22170608 3/8” 1/2” A10172020 1.1/4” 1.1/4”
A22170806 1/2” 3/8” A10172424 1.1/2” 1.1/2”
A22170808 1/2” 1/2” A10173232 2” 2”

PH: 0800 FITTINGS 24 HOURS. Page A23
