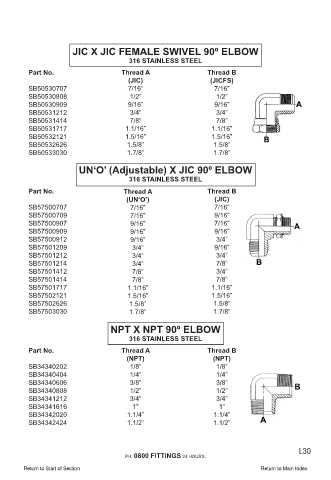

Page 266 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

JIC X JIC FEMALE SWIVEL 90º ELBOW

316 STAINLESS STEEL

Part No. Thread A Thread B
(JIC) (JICFS)
SB50530707 7/16” 7/16”
SB50530808 1/2” 1/2”
SB50530909 9/16” 9/16”
SB50531212 3/4” 3/4”
SB50531414 7/8” 7/8”
SB50531717 1.1/16” 1.1/16”
SB50532121 1.5/16” 1.5/16”
SB50532626 1.5/8” 1.5/8”
SB50533030 1.7/8” 1.7/8”

UN‘O’ (Adjustable) X JIC 90º ELBOW

316 STAINLESS STEEL
Part No. Thread A Thread B
(UN‘O’) (JIC)
SB57500707 7/16” 7/16”
SB57500709 7/16” 9/16”
SB57500907 9/16” 7/16”
SB57500909 9/16” 9/16”
SB57500912 9/16” 3/4”
SB57501209 3/4” 9/16”
SB57501212 3/4” 3/4”
SB57501214 3/4” 7/8”
SB57501412 7/8” 3/4”
SB57501414 7/8” 7/8”
SB57501717 1.1/16” 1.1/16”
SB57502121 1.5/16” 1.5/16”
SB57502626 1.5/8” 1.5/8”
SB57503030 1.7/8” 1.7/8”

NPT X NPT 90º ELBOW

316 STAINLESS STEEL
Part No. Thread A Thread B
(NPT) (NPT)
SB34340202 1/8” 1/8”
SB34340404 1/4” 1/4”
SB34340606 3/8” 3/8”
SB34340808 1/2” 1/2”
SB34341212 3/4” 3/4”
SB34341616 1” 1”
SB34342020 1.1/4” 1.1/4”
SB34342424 1.1/2” 1.1/2”

L26

PAGE A26 L30
