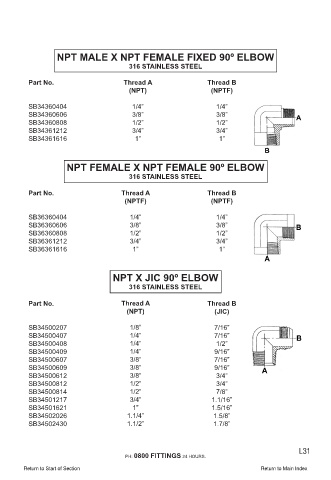

Page 267 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

NPT MALE X NPT FEMALE FIXED 90º ELBOW
316 STAINLESS STEEL

Part No. Thread A Thread B
(NPT) (NPTF)

SB34360404 1/4” 1/4”
SB34360606 3/8” 3/8”
SB34360808 1/2” 1/2”
SB34361212 3/4” 3/4”
SB34361616 1” 1”

NPT FEMALE X NPT FEMALE 90º ELBOW

316 STAINLESS STEEL

Part No. Thread A Thread B
(NPTF) (NPTF)

SB36360404 1/4” 1/4”
SB36360606 3/8” 3/8”
SB36360808 1/2” 1/2”
SB36361212 3/4” 3/4”
SB36361616 1” 1”

NPT X JIC 90º ELBOW

316 STAINLESS STEEL

Part No. Thread A Thread B
(NPT) (JIC)

SB34500207 1/8” 7/16”
SB34500407 1/4” 7/16”
SB34500408 1/4” 1/2”
SB34500409 1/4” 9/16”
SB34500607 3/8” 7/16”
SB34500609 3/8” 9/16”
SB34500612 3/8” 3/4”
SB34500812 1/2” 3/4”
SB34500814 1/2” 7/8”
SB34501217 3/4” 1.1/16”
SB34501621 1” 1.5/16”
SB34502026 1.1/4” 1.5/8”
SB34502430 1.1/2” 1.7/8”
