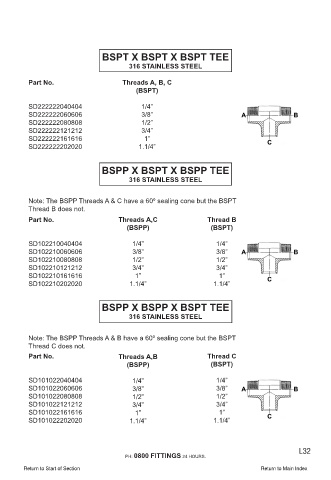

Page 268 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

BSPT X BSPT X BSPT TEE
316 STAINLESS STEEL

Part No. Threads A, B, C
(BSPT)

SD222222040404 1/4”
SD222222060606 3/8”
SD222222080808 1/2”
SD222222121212 3/4”
SD222222161616 1”
SD222222202020 1.1/4”

BSPP X BSPT X BSPP TEE

316 STAINLESS STEEL

Note: The BSPP Threads A & C have a 60º sealing cone but the BSPT
Thread B does not.

Part No. Threads A,C Thread B
(BSPP) (BSPT)

SD102210040404 1/4” 1/4”
SD102210060606 3/8” 3/8”
SD102210080808 1/2” 1/2”
SD102210121212 3/4” 3/4”
SD102210161616 1” 1”
SD102210202020 1.1/4” 1.1/4”

BSPP X BSPP X BSPT TEE
316 STAINLESS STEEL

Note: The BSPP Threads A & B have a 60º sealing cone but the BSPT
Thread C does not.
Part No. Threads A,B Thread C
(BSPP) (BSPT)

SD101022040404 1/4” 1/4”
SD101022060606 3/8” 3/8”
SD101022080808 1/2” 1/2”
SD101022121212 3/4” 3/4”
SD101022161616 1” 1”
SD101022202020 1.1/4” 1.1/4”
