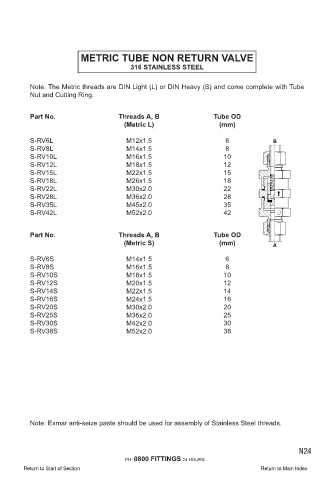

METRIC TUBE NON RETURN VALVE
316 STAINLESS STEEL

Note: The Metric threads are DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring.

Part No. Threads A, B Tube OD
(Metric L) (mm)

S-RV6L M12x1.5 6
S-RV8L M14x1.5 8
S-RV10L M16x1.5 10
S-RV12L M18x1.5 12
S-RV15L M22x1.5 15
S-RV18L M26x1.5 18
S-RV22L M30x2.0 22
S-RV28L M36x2.0 28
S-RV35L M45x2.0 35
S-RV42L M52x2.0 42

Part No. Threads A, B Tube OD
(Metric S) (mm)

S-RV6S M14x1.5 6
S-RV8S M16x1.5 8
S-RV10S M18x1.5 10
S-RV12S M20x1.5 12
S-RV14S M22x1.5 14
S-RV16S M24x1.5 16
S-RV20S M30x2.0 20
S-RV25S M36x2.0 25
S-RV30S M42x2.0 30
S-RV38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
