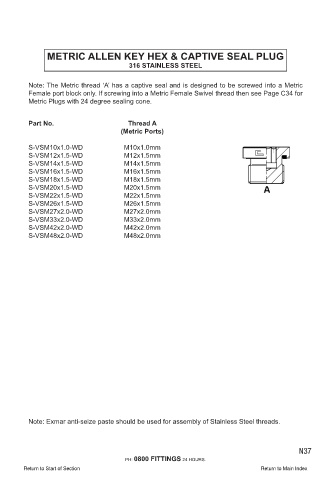

METRIC ALLEN KEY HEX & CAPTIVE SEAL PLUG
316 STAINLESS STEEL

Note: The Metric thread ‘A’ has a captive seal and is designed to be screwed into a Metric
Female port block only. If screwing into a Metric Female Swivel thread then see Page C34 for
Metric Plugs with 24 degree sealing cone.

Part No. Thread A
(Metric Ports)

S-VSM10x1.0-WD M10x1.0mm
S-VSM12x1.5-WD M12x1.5mm
S-VSM14x1.5-WD M14x1.5mm
S-VSM16x1.5-WD M16x1.5mm
S-VSM18x1.5-WD M18x1.5mm
S-VSM20x1.5-WD M20x1.5mm
S-VSM22x1.5-WD M22x1.5mm
S-VSM26x1.5-WD M26x1.5mm
S-VSM27x2.0-WD M27x2.0mm
S-VSM33x2.0-WD M33x2.0mm
S-VSM42x2.0-WD M42x2.0mm
S-VSM48x2.0-WD M48x2.0mm

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
