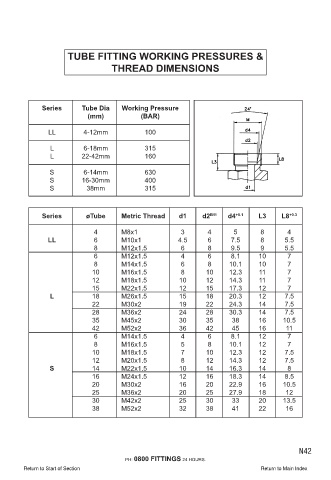

Page 332 - Fluid Fitting 2018_extended

HIGH QUALITY PRODUCTS EXCELLENCE IN SERVICE

TUBE FITTING WORKING PRESSURES &
THREAD DIMENSIONS

Series Tube Dia Working Pressure
(mm) (BAR)

LL 4-12mm 100

L 6-18mm 315
L 22-42mm 160

S 6-14mm 630
S 16-30mm 400
S 38mm 315

Series øTube Metric Thread d1 d2 B11 d4 +0.1 L3 L8 +0.3

4 M8x1 3 4 5 8 4
LL 6 M10x1 4.5 6 7.5 8 5.5
8 M12x1.5 6 8 9.5 9 5.5
6 M12x1.5 4 6 8.1 10 7
8 M14x1.5 6 8 10.1 10 7
10 M16x1.5 8 10 12.3 11 7
12 M18x1.5 10 12 14.3 11 7
15 M22x1.5 12 15 17.3 12 7
L 18 M26x1.5 15 18 20.3 12 7.5
22 M30x2 19 22 24.3 14 7.5
28 M36x2 24 28 30.3 14 7.5
35 M45x2 30 35 38 16 10.5
42 M52x2 36 42 45 16 11
6 M14x1.5 4 6 8.1 12 7
8 M16x1.5 5 8 10.1 12 7
10 M18x1.5 7 10 12.3 12 7.5
12 M20x1.5 8 12 14.3 12 7.5
S 14 M22x1.5 10 14 16.3 14 8
16 M24x1.5 12 16 18.3 14 8.5
20 M30x2 16 20 22.9 16 10.5
25 M36x2 20 25 27.9 18 12
30 M42x2 25 30 33 20 13.5
38 M52x2 32 38 41 22 16
