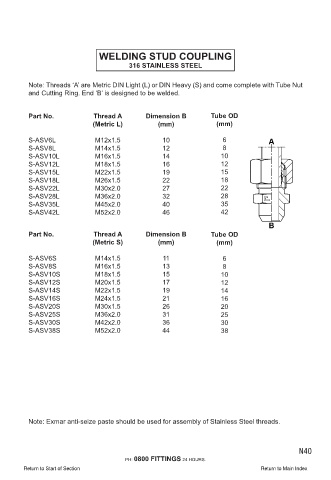

WELDING STUD COUPLING
316 STAINLESS STEEL

Note: Threads ‘A’ are Metric DIN Light (L) or DIN Heavy (S) and come complete with Tube Nut
and Cutting Ring. End ‘B’ is designed to be welded.

Part No. Thread A Dimension B Tube OD
(Metric L) (mm) (mm)

S-ASV6L M12x1.5 10 6
S-ASV8L M14x1.5 12 8
S-ASV10L M16x1.5 14 10
S-ASV12L M18x1.5 16 12
S-ASV15L M22x1.5 19 15
S-ASV18L M26x1.5 22 18
S-ASV22L M30x2.0 27 22
S-ASV28L M36x2.0 32 28
S-ASV35L M45x2.0 40 35
S-ASV42L M52x2.0 46 42

Part No. Thread A Dimension B Tube OD
(Metric S) (mm) (mm)

S-ASV6S M14x1.5 11 6
S-ASV8S M16x1.5 13 8
S-ASV10S M18x1.5 15 10
S-ASV12S M20x1.5 17 12
S-ASV14S M22x1.5 19 14
S-ASV16S M24x1.5 21 16
S-ASV20S M30x1.5 26 20
S-ASV25S M36x2.0 31 25
S-ASV30S M42x2.0 36 30
S-ASV38S M52x2.0 44 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
