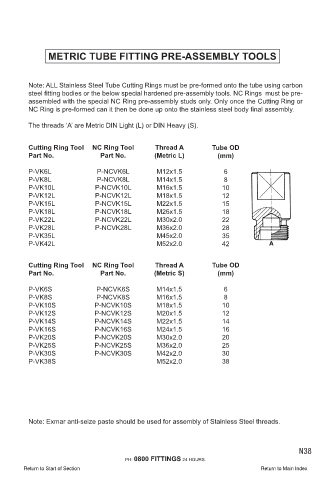

METRIC TUBE FITTING PRE-ASSEMBLY TOOLS

Note: ALL Stainless Steel Tube Cutting Rings must be pre-formed onto the tube using carbon
steel fitting bodies or the below special hardened pre-assembly tools. NC Rings must be pre-
assembled with the special NC Ring pre-assembly studs only. Only once the Cutting Ring or
NC Ring is pre-formed can it then be done up onto the stainless steel body final assembly.

The threads ‘A’ are Metric DIN Light (L) or DIN Heavy (S).

Cutting Ring Tool NC Ring Tool Thread A Tube OD
Part No. Part No. (Metric L) (mm)

P-VK6L P-NCVK6L M12x1.5 6
P-VK8L P-NCVK8L M14x1.5 8
P-VK10L P-NCVK10L M16x1.5 10
P-VK12L P-NCVK12L M18x1.5 12
P-VK15L P-NCVK15L M22x1.5 15
P-VK18L P-NCVK18L M26x1.5 18
P-VK22L P-NCVK22L M30x2.0 22
P-VK28L P-NCVK28L M36x2.0 28
P-VK35L M45x2.0 35
P-VK42L M52x2.0 42

Cutting Ring Tool NC Ring Tool Thread A Tube OD
Part No. Part No. (Metric S) (mm)

P-VK6S P-NCVK6S M14x1.5 6
P-VK8S P-NCVK8S M16x1.5 8
P-VK10S P-NCVK10S M18x1.5 10
P-VK12S P-NCVK12S M20x1.5 12
P-VK14S P-NCVK14S M22x1.5 14
P-VK16S P-NCVK16S M24x1.5 16
P-VK20S P-NCVK20S M30x2.0 20
P-VK25S P-NCVK25S M36x2.0 25
P-VK30S P-NCVK30S M42x2.0 30
P-VK38S M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
