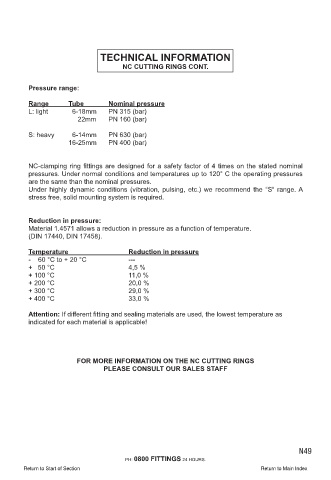

TECHNICAL INFORMATION
NC CUTTING RINGS CONT.

Pressure range:

Range Tube Nominal pressure
L: light 6-18mm PN 315 (bar)
22mm PN 160 (bar)

S: heavy 6-14mm PN 630 (bar)
16-25mm PN 400 (bar)

NC-clamping ring fittings are designed for a safety factor of 4 times on the stated nominal
pressures. Under normal conditions and temperatures up to 120° C the operating pressures
are the same than the nominal pressures.
Under highly dynamic conditions (vibration, pulsing, etc.) we recommend the “S“ range. A
stress free, solid mounting system is required.

Reduction in pressure:
Material 1.4571 allows a reduction in pressure as a function of temperature.
(DIN 17440, DIN 17458).

Temperature Reduction in pressure
- 60 °C to + 20 °C ---
+ 50 °C 4,5 %
+ 100 °C 11,0 %
+ 200 °C 20,0 %
+ 300 °C 29,0 %
+ 400 °C 33,0 %

Attention: If different fitting and sealing materials are used, the lowest temperature as
indicated for each material is applicable!

FOR MORE INFORMATION ON THE NC CUTTING RINGS
PLEASE CONSULT OUR SALES STAFF

PH: 0800 FITTINGS 24 HOURS. N49
