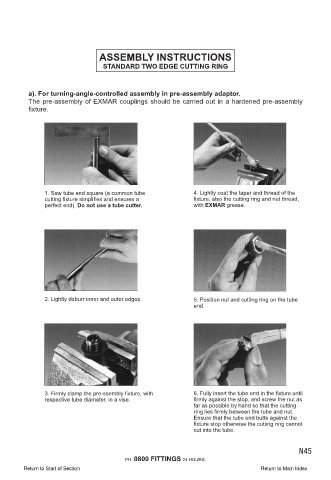

ASSEMBLY INSTRUCTIONS
STANDARD TWO EDGE CUTTING RING

a). For turning-angle-controlled assembly in pre-assembly adaptor.
The pre-assembly of EXMAR couplings should be carried out in a hardened pre-assembly
fixture.

1. Saw tube end square (a common tube 4. Lightly coat the taper and thread of the
cutting fixture simplifies and ensures a fixture, also the cutting ring and nut thread,
perfect end). Do not use a tube cutter. with EXMAR grease.

2. Lightly deburr inner and outer edges. 5. Position nut and cutting ring on the tube
end.

3. Firmly clamp the pre-ssembly fixture, with 6. Fully insert the tube end in the fixture until
respective tube diameter, in a vise. firmly against the stop, and screw the nut as
far as possible by hand so that the cutting
ring lies firmly between the tube and nut.
Ensure that the tube end butts against the
fixture stop otherwise the cutting ring cannot
cut into the tube.
