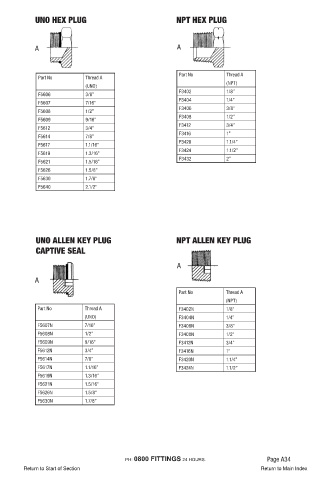

Page 38 - Fluid Fitting 2018_extended

UNO HEX PLUG NPT HEX PLUG

A A

Part No Thread A
Part No Thread A
(NPT)
(UNO)
F3402 1/8”
F5606 3/8”
F3404 1/4”
F5607 7/16”
F3406 3/8”
F5608 1/2”
F3408 1/2”
F5609 9/16”
F3412 3/4”
F5612 3/4”
F3416 1”
F5614 7/8”
F3420 1.1/4”
F5617 1.1/16”
F3424 1.1/2”
F5619 1.3/16”
F3432 2”
F5621 1.5/16”
F5626 1.5/8”
F5630 1.7/8”
F5640 2.1/2”

UNO ALLEN KEY PLUG NPT ALLEN KEY PLUG

CAPTIVE SEAL

A

A

Part No Thread A
(NPT)
Part No Thread A F3402N 1/8”
(UNO) F3404N 1/4”
F5607N 7/16” F3406N 3/8”
F5608N 1/2” F3408N 1/2”
F5609N 9/16” F3412N 3/4”
F5612N 3/4” F3416N 1”
F5614N 7/8” F3420N 1.1/4”
F5617N 1.1/16” F3424N 1.1/2”
F5619N 1.3/16”
F5621N 1.5/16”
F5626N 1.5/8”
F5630N 1.7/8”
