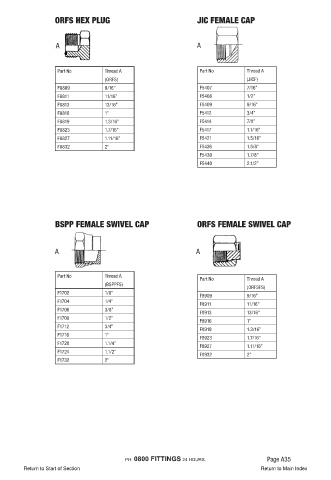

ORFS HEX PLUG JIC FEMALE CAP

A A

Part No Thread A Part No Thread A
(ORFS) (JICF)
F8809 9/16” F5407 7/16”
F8811 11/16” F5408 1/2”
F8813 13/16” F5409 9/16”
F8816 1” F5412 3/4”
F8819 1.3/16” F5414 7/8”
F8823 1.7/16” F5417 1.1/16”
F8827 1.11/16” F5421 1.5/16”
F8832 2” F5426 1.5/8”
F5430 1.7/8”
F5440 2.1/2”

BSPP FEMALE SWIVEL CAP ORFS FEMALE SWIVEL CAP

A A

Part No Thread A
Part No Thread A
(BSPPFS)
(ORFSFS)
F1702 1/8”
F8909 9/16”
F1704 1/4”
F8911 11/16”
F1706 3/8”
F8913 13/16”
F1708 1/2”
F8916 1”
F1712 3/4”
F8919 1.3/16”
F1716 1”
F8923 1.7/16”
F1720 1.1/4”
F8927 1.11/16”
F1724 1.1/2”
F8932 2”
F1732 2”
