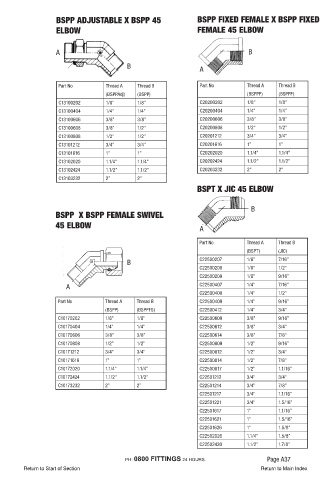

BSPP ADJUSTABLE X BSPP 45 BSPP FIXED FEMALE X BSPP FIXED
ELBOW FEMALE 45 ELBOW

A B

B A

Part No Thread A Thread B Part No Thread A Thread B
(BSPPAdj) (BSPP) (BSPPF) (BSPPF)
C13100202 1/8” 1/8” C20200202 1/8” 1/8”
C13100404 1/4” 1/4” C20200404 1/4” 1/4”
C13100606 3/8” 3/8” C20200606 3/8” 3/8”
C13100608 3/8” 1/2” C20200808 1/2” 1/2”
C13100808 1/2” 1/2” C20201212 3/4” 3/4”
C13101212 3/4” 3/4” C20201616 1” 1”
C13101616 1” 1” C20202020 1.1/4” 1.1/4”
C13102020 1.1/4” 1.1/4” C20202424 1.1/2” 1.1/2”
C13102424 1.1/2” 1.1/2” C20203232 2” 2”
C13103232 2” 2”
BSPT X JIC 45 ELBOW

B
BSPP X BSPP FEMALE SWIVEL
45 ELBOW A

Part No Thread A Thread B
(BSPT) (JIC)
B C22500207 1/8” 7/16”
C22500208 1/8” 1/2”
C22500209 1/8” 9/16”
A C22500407 1/4” 7/16”
C22500408 1/4” 1/2”
Part No Thread A Thread B C22500409 1/4” 9/16”
(BSPP) (BSPPFS) C22500412 1/4” 3/4”
C10170202 1/8” 1/8” C22500609 3/8” 9/16”
C10170404 1/4” 1/4” C22500612 3/8” 3/4”
C10170606 3/8” 3/8” C22500614 3/8” 7/8”
C10170808 1/2” 1/2” C22500809 1/2” 9/16”
C10171212 3/4” 3/4” C22500812 1/2” 3/4”
C10171616 1” 1” C22500814 1/2” 7/8”
C10172020 1.1/4” 1.1/4” C22500817 1/2” 1.1/16”
C10172424 1.1/2” 1.1/2” C22501212 3/4” 3/4”
C10173232 2” 2” C22501214 3/4” 7/8”
C22501217 3/4” 1.1/16”
C22501221 3/4” 1.5/16”
C22501617 1” 1.1/16”
C22501621 1” 1.5/16”
C22501626 1” 1.5/8”
C22502026 1.1/4” 1.5/8”
C22502430 1.1/2” 1.7/8”

PH: 0800 FITTINGS 24 HOURS. Page A37
