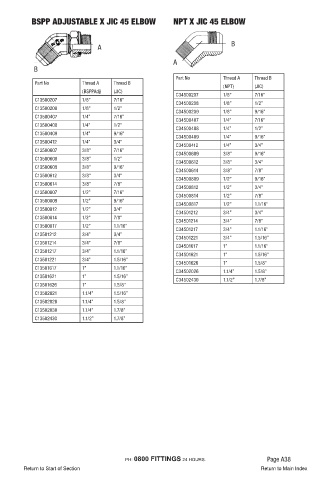

BSPP ADJUSTABLE X JIC 45 ELBOW NPT X JIC 45 ELBOW

A B

A
B
Part No Thread A Thread B
Part No Thread A Thread B
(NPT) (JIC)
(BSPPAdj) (JIC)
C34500207 1/8” 7/16”
C13500207 1/8” 7/16”
C34500208 1/8” 1/2”
C13500208 1/8” 1/2”
C34500209 1/8” 9/16”
C13500407 1/4” 7/16”
C34500407 1/4” 7/16”
C13500408 1/4” 1/2”
C34500408 1/4” 1/2”
C13500409 1/4” 9/16”
C34500409 1/4” 9/16”
C13500412 1/4” 3/4”
C34500412 1/4” 3/4”
C13500607 3/8” 7/16”
C34500609 3/8” 9/16”
C13500608 3/8” 1/2”
C34500612 3/8” 3/4”
C13500609 3/8” 9/16”
C34500614 3/8” 7/8”
C13500612 3/8” 3/4”
C34500809 1/2” 9/16”
C13500614 3/8” 7/8”
C34500812 1/2” 3/4”
C13500807 1/2” 7/16”
C34500814 1/2” 7/8”
C13500809 1/2” 9/16”
C34500817 1/2” 1.1/16”
C13500812 1/2” 3/4”
C34501212 3/4” 3/4”
C13500814 1/2” 7/8”
C34501214 3/4” 7/8”
C13500817 1/2” 1.1/16”
C34501217 3/4” 1.1/16”
C13501212 3/4” 3/4”
C34501221 3/4” 1.5/16”
C13501214 3/4” 7/8”
C34501617 1” 1.1/16”
C13501217 3/4” 1.1/16”
C34501621 1” 1.5/16”
C13501221 3/4” 1.5/16”
C34501626 1” 1.5/8”
C13501617 1” 1.1/16”
C34502026 1.1/4” 1.5/8”
C13501621 1” 1.5/16”
C34502430 1.1/2” 1.7/8”
C13501626 1” 1.5/8”
C13502021 1.1/4” 1.5/16”
C13502026 1.1/4” 1.5/8”
C13502030 1.1/4” 1.7/8”
C13502430 1.1/2” 1.7/8”
