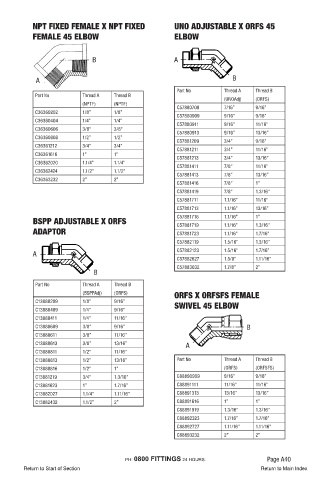

NPT FIXED FEMALE X NPT FIXED UNO ADJUSTABLE X ORFS 45

FEMALE 45 ELBOW ELBOW

B A

A B
Part No Thread A Thread B
Part No Thread A Thread B
(UNOAdj) (ORFS)
(NPTF) (NPTF)
C57880709 7/16” 9/16”
C36360202 1/8” 1/8”
C57880909 9/16” 9/16”
C36360404 1/4” 1/4”
C57880911 9/16” 11/16”
C36360606 3/8” 3/8”
C57880913 9/16” 13/16”
C36360808 1/2” 1/2”
C57881209 3/4” 9/16”
C36361212 3/4” 3/4”
C57881211 3/4” 11/16”
C36361616 1” 1”
C57881213 3/4” 13/16”
C36362020 1.1/4” 1.1/4”
C57881411 7/8” 11/16”
C36362424 1.1/2” 1.1/2”
C57881413 7/8” 13/16”
C36363232 2” 2”
C57881416 7/8” 1”
C57881419 7/8” 1.3/16”
C57881711 1.1/16” 11/16”
C57881713 1.1/16” 13/16”

BSPP ADJUSTABLE X ORFS C57881716 1.1/16” 1”
1.3/16”
1.1/16”
C57881719
ADAPTOR C57881723 1.1/16” 1.7/16”
C57882119 1.5/16” 1.3/16”
A C57882123 1.5/16” 1.7/16”
C57882627 1.5/8” 1.11/16”
C57883032 1.7/8” 2”
B

Part No Thread A Thread B
(BSPPAdj) (ORFS) ORFS X ORFSFS FEMALE
C13880209 1/8” 9/16”
C13880409 1/4” 9/16” SWIVEL 45 ELBOW
C13880411 1/4” 11/16”
C13880609 3/8” 9/16” B
C13880611 3/8” 11/16”
C13880613 3/8” 13/16” A
C13880811 1/2” 11/16”
C13880813 1/2” 13/16” Part No Thread A Thread B
C13880816 1/2” 1” (ORFS) (ORFSFS)
C13881219 3/4” 1.3/16” C88890909 9/16” 9/16”
C13881623 1” 1.7/16” C88891111 11/16” 11/16”
C13882027 1.1/4” 1.11/16” C88891313 13/16” 13/16”
C13882432 1.1/2” 2” C88891616 1” 1”
C88891919 1.3/16” 1.3/16”
C88892323 1.7/16” 1.7/16”
C88892727 1.11/16” 1.11/16”
C88893232 2” 2”
