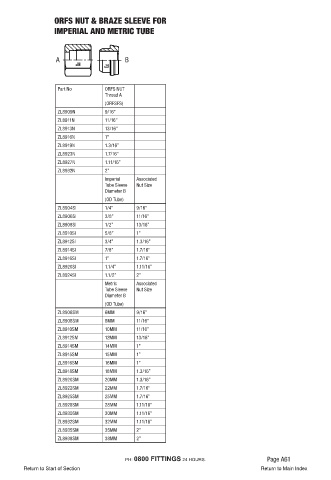

Page 65 - Fluid Fitting 2018_extended

ORFS NUT & BRAZE SLEEVE FOR
IMPERIAL AND METRIC TUBE

A B

Part No ORFS NUT
Thread A
(ORFSFS)
ZL8909N 9/16”
ZL8911N 11/16”
ZL8913N 13/16”
ZL8916N 1”
ZL8919N 1.3/16”
ZL8923N 1.7/16”
ZL8927N 1.11/16”
ZL8932N 2”
Imperial Associated
Tube Sleeve Nut Size
Diameter B
(OD Tube)
ZL8904SI 1/4” 9/16”
ZL8906SI 3/8” 11/16”
ZL8908SI 1/2” 13/16”
ZL8910SI 5/8” 1”
ZL8912SI 3/4” 1.3/16”
ZL8914SI 7/8” 1.7/16”
ZL8916SI 1” 1.7/16”
ZL8920SI 1.1/4” 1.11/16”
ZL8924SI 1.1/2” 2”
Metric Associated
Tube Sleeve Nut Size
Diameter B
(OD Tube)
ZL8906SM 6MM 9/16”
ZL8908SM 8MM 11/16”
ZL8910SM 10MM 11/16”
ZL8912SM 12MM 13/16”
ZL8914SM 14MM 1”
ZL8915SM 15MM 1”
ZL8916SM 16MM 1”
ZL8918SM 18MM 1.3/16”
ZL8920SM 20MM 1.3/16”
ZL8922SM 22MM 1.7/16”
ZL8925SM 25MM 1.7/16”
ZL8928SM 28MM 1.11/16”
ZL8930SM 30MM 1.11/16”
ZL8932SM 32MM 1.11/16”
ZL8935SM 35MM 2”
ZL8938SM 38MM 2”
