Page 61 - Fluid Fitting 2018_extended

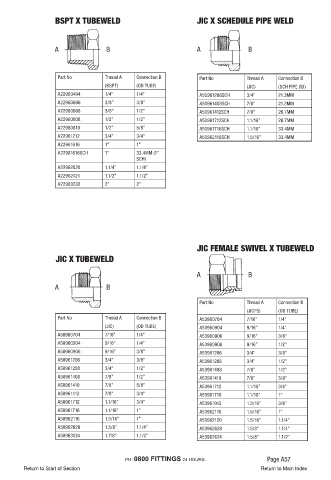

BSPT X TUBEWELD JIC X SCHEDULE PIPE WELD

A B A B

Part No Thread A Connection B Part No Thread A Connection B
(BSPT) (OD TUBE) (JIC) (SCH PIPE OD)
A22960404 1/4” 1/4” A50961208SCH 3/4” 21.3MM
A22960606 3/8” 3/8” A50961408SCH 7/8” 21.3MM
A22960608 3/8” 1/2” A50961412SCH 7/8” 26.7MM
A22960808 1/2” 1/2” A50961712SCH 1.1/16” 26.7MM
A22960810 1/2” 5/8” A50961716SCH 1.1/16” 33.4MM
A22961212 3/4” 3/4” A50962116SCH 1.5/16” 33.4MM
A22961616 1” 1”
A22961616SCH 1” 33.4MM (1”
SCH)
A22962020 1.1/4” 1.1/4”
A22962424 1.1/2” 1.1/2”
A22963232 2” 2”

JIC FEMALE SWIVEL X TUBEWELD
JIC X TUBEWELD

A B

A B

Part No Thread A Connection B
(JICFS) (OD TUBE)
Part No Thread A Connection B A53960704 7/16” 1/4”
(JIC) (OD TUBE) A53960904 9/16” 1/4”
A50960704 7/16” 1/4” A53960906 9/16” 3/8”
A50960904 9/16” 1/4” A53960908 9/16” 1/2”
A50960906 9/16” 3/8” A53961206 3/4” 3/8”
A50961206 3/4” 3/8” A53961208 3/4” 1/2”
A50961208 3/4” 1/2” A53961408 7/8” 1/2”
A50961408 7/8” 1/2” A53961410 7/8” 5/8”
A50961410 7/8” 5/8” A53961712 1.1/16” 3/4”
A50961412 7/8” 3/4” A53961716 1.1/16” 1”
A50961712 1.1/16” 3/4” A53961912 1.3/16” 3/4”
A50961716 1.1/16” 1” A53962116 1.5/16” 1”
A50962116 1.5/16” 1” A53962120 1.5/16” 1.1/4”
A50962620 1.5/8” 1.1/4” A53962620 1.5/8” 1.1/4”
A50963024 1.7/8” 1.1/2” A53962624 1.5/8” 1.1/2”
